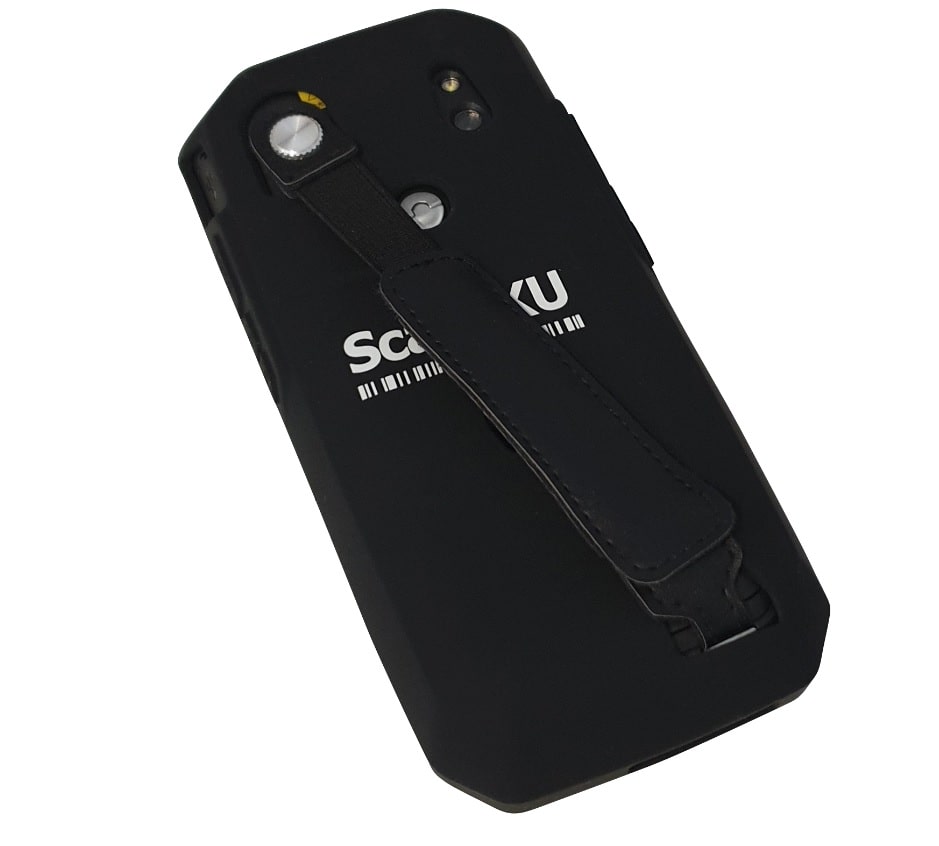

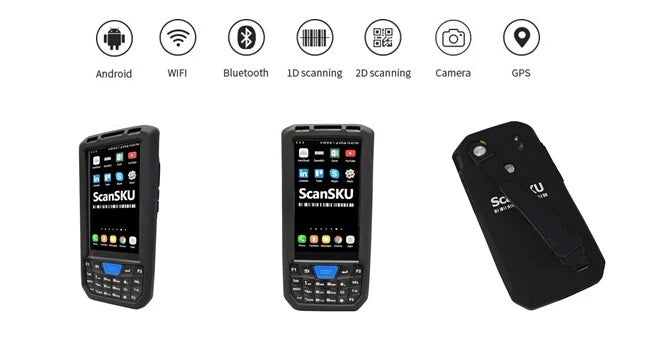

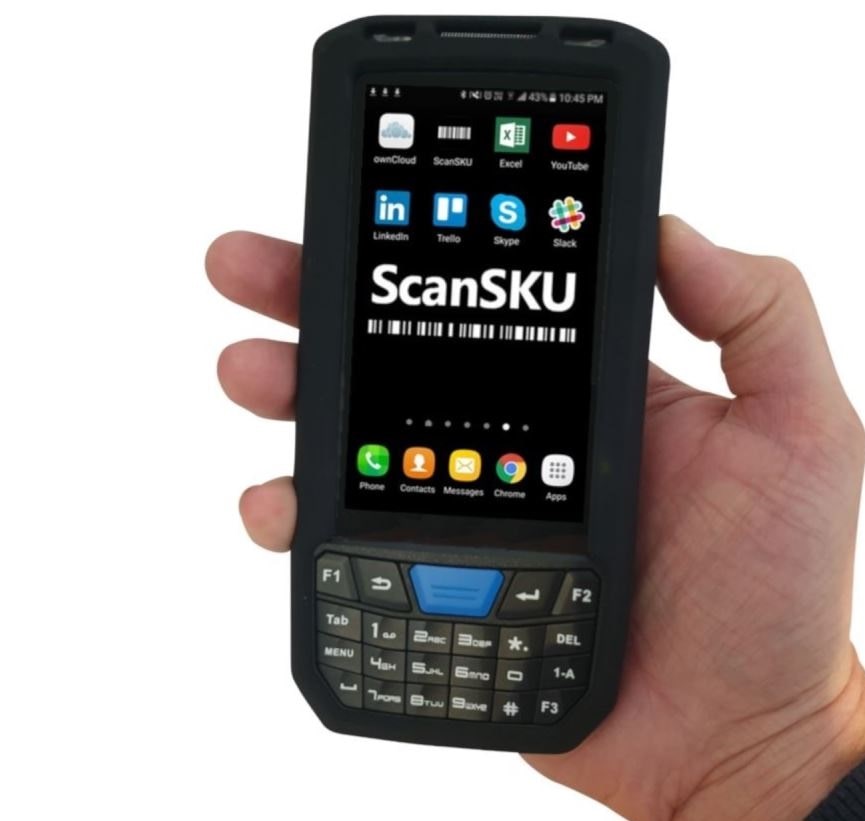

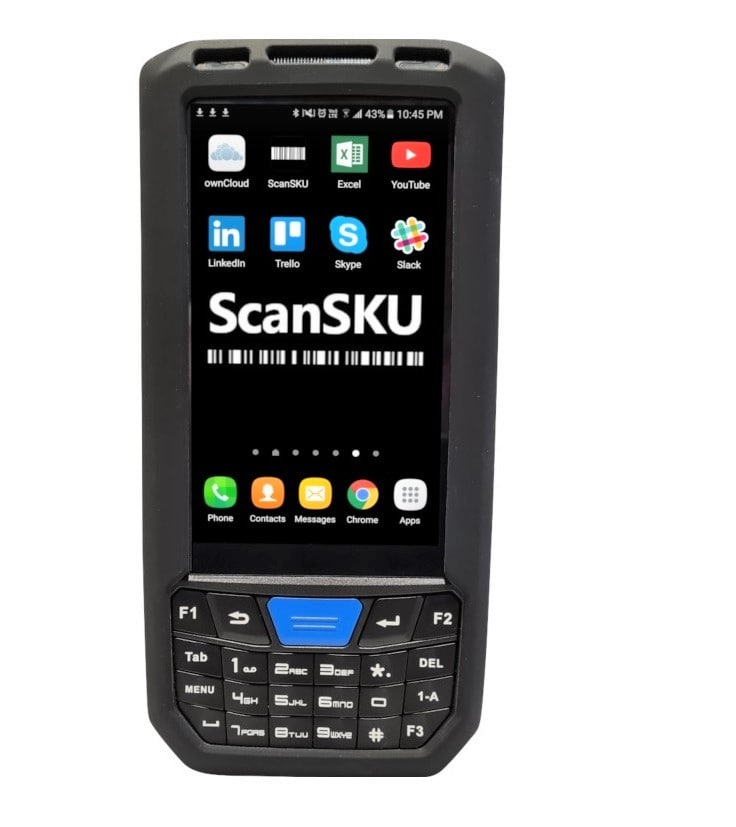

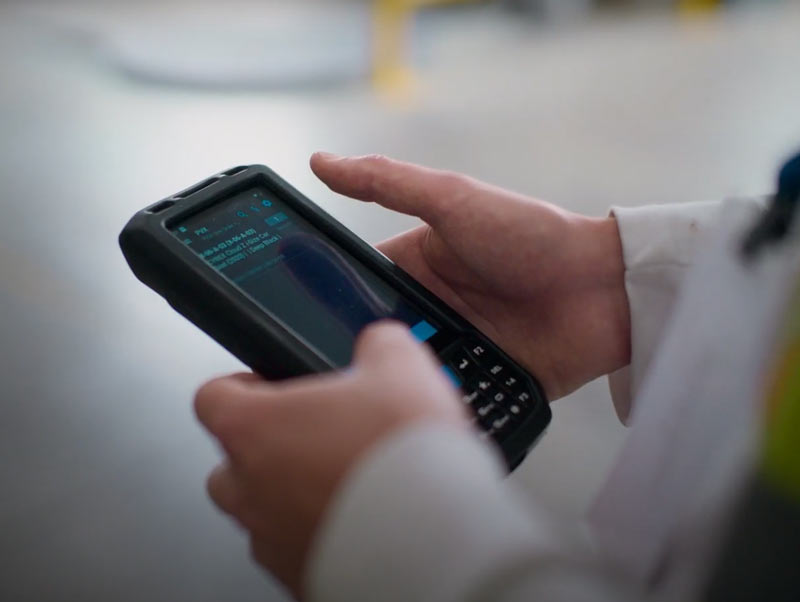

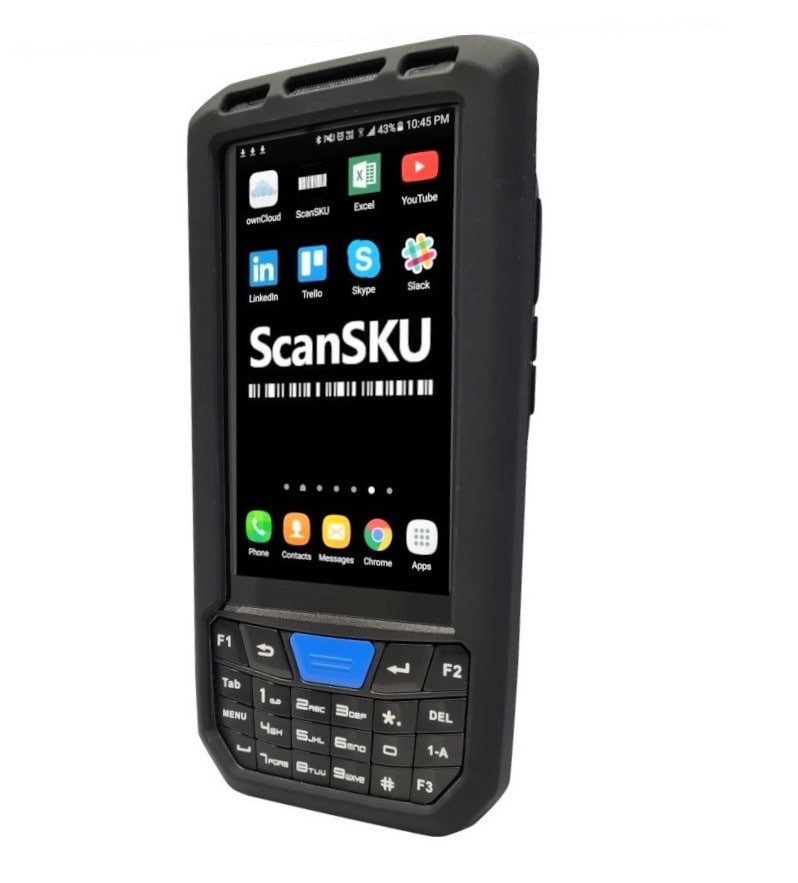

Android Barcode Scanner- Rugged R Series (1D)

  • Sale
  • Regular price $612.00 USD
Tax included. Free US & Canada shipping.


The R Series Android Barcode Scanner (1D) is a robust and versatile device designed for high-speed, accurate data collection. This mobile scanner is built to withstand tough environmental conditions, making it ideal for use in a range of industries including retail, logistics, and healthcare.

Compatible with Dear WMS, PeopleVox, Cin7 and many other platforms.

30 Day Returns
Expert Advice

Repairs performed at our repair centre in Texas, USA

Key Features

  • 4.5-inch HD Screen: Clear and vibrant display for easy readability.
  • High-Speed Quad-Core Processor: Ensures quick and efficient operations.
  • Android 9.0 System: Offers a familiar interface and compatibility with various apps.
  • 4G Connectivity: Allows for fast data transfer and real-time updates.
  • 1D Barcode Scanning: Built with a Linear scanner for fast and accurate scanning.
  • 8MP Rear Camera: Features auto-focus, flash, and macro shooting.
  • Long Battery Life: Over 350 hours of standby time and 12 hours of active use.
  • Rugged Build: Drop-resistant up to 5 feet (1.5 meters) and IP66 protection level.

Detailed Specifications

Scanning Capabilities

  • 1D Symbologies: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, and many more.

User Environment

  • Operating Temperature: -4°F to +131°F (-20℃ to +55℃)
  • Storage Temperature: -40°F to +158°F  (-40℃ to +70℃)
  • Drop Specification: Resilient to 5 foot drops (1.5 meters) and rugged use.
  • DurabilityIP66 Rated


  • CPU: Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor.
  • RAM+ROM: 2GB+16GB, expandable up to 3GB+32GB.
  • System: Android 9.0

Data Communication

  • WLAN: Dual-band 2.4GHz / 5GHz, supports IEEE 802 a/b/g/n/ac.
  • WWAN: Supports 2G, 3G, and 4G frequencies.
  • Bluetooth: 2.1+EDR/3.0+HS/4.1+HS, with a transmission distance of 15-32 feet (5-10 meters)

Physical Parameters

  • Dimensions: 166mm×77.5mm×22mm
  • Weight: 17 oz (< 500g)

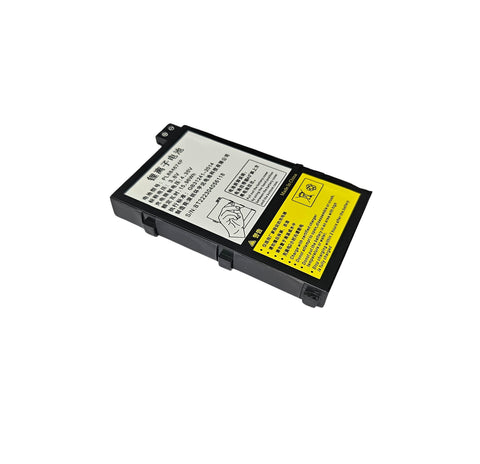

  • Battery: Rechargeable polymer battery (3.8V 4200mah), with over 350 hours of standby time and more than 12 hours of working time.

What's Included

  • Scanner, Battery, and USB-C Charging Cable

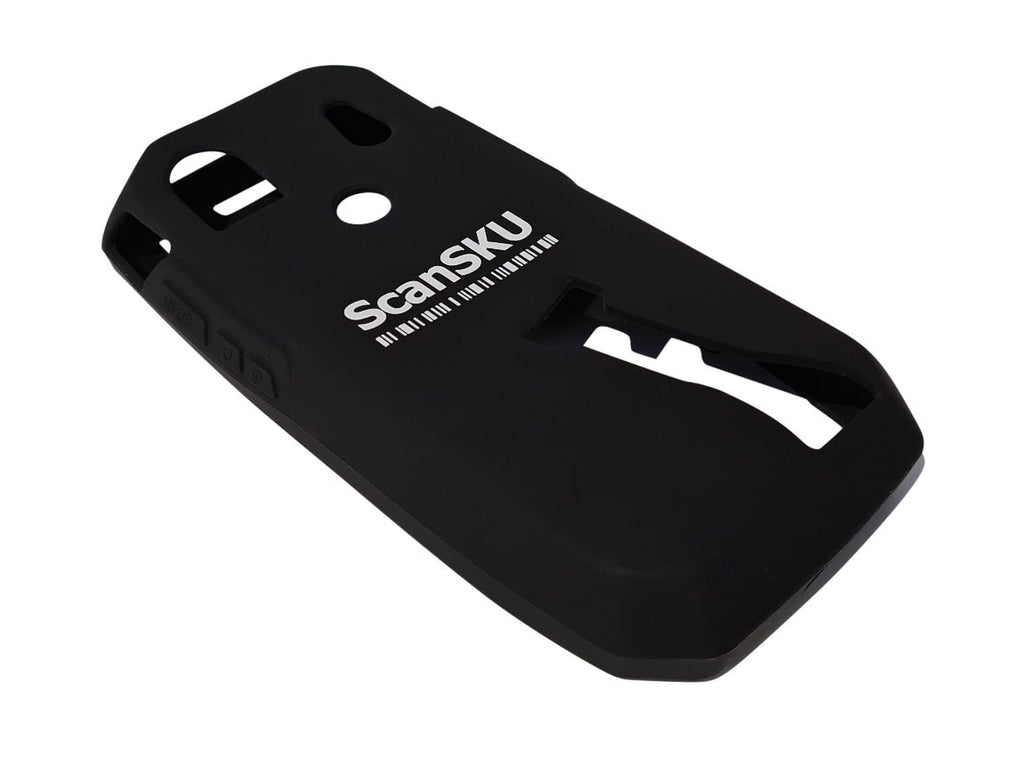

  • Rubber Protective Case
  • Wrist and Hand Strap
  • Screen Protector

What is 1D and 2D?

1D barcodes are linear codes and can hold a limited amount of text data. 2D barcodes, such as QR codes, can hold a significant amount of data and even include images or website links.

Looking for 1D & 2D Scanning?

If your operations require 2D scanning, consider our R Series Android Barcode Scanner (1D & 2D). It offers specialized features tailored for 1D and 2D barcode scanning.
